Time Range
The Time Range widget is available for WFS Datasources.
The widget filters the data differently if the configuration defines an interval or not. An interval is defined when a value is provided to the Max Property Name.

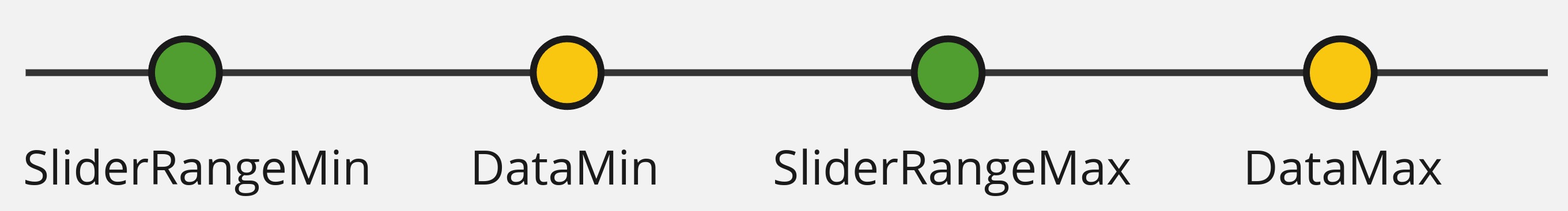

Interval data
The Time Range widget only shows the features on the map that have a range that overlaps with the widget slider.
The formula to filter intervals is:
DataMin ≤ SliderRangeMax && DataMax ≥ SliderRangeMin

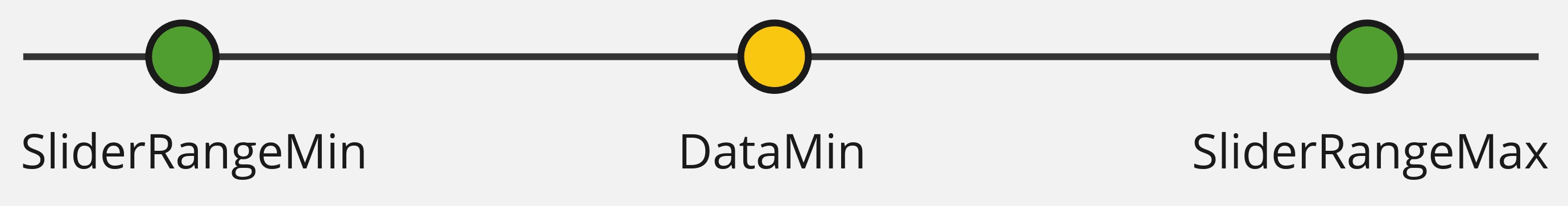

Non-interval data
The Time Range widget only shows the features on the map that have a value that is included by the widget slider range.
The formula to filter non-intervals is:
DataMin ≤ SliderRangeMax && DataMin ≥ SliderRangeMin
Min Property Name
The name of the feature — one element of the vector dataset — property, which holds the value for DataMin.
Max Property Name
The name of the feature property, which holds the value for DataMax.
As described above, this field is optional.
Min and Max Property Format
Defines the format used to serialize dates when building queries from the time widget values.
Possible values are:
- Unix Timestamp in seconds
- Unix Timestamp in milliseconds
- DayJS compatible
