Time Range

The Time Range widget is available for WFS data sources.

The widget filters the data differently if the configuration defines an interval or not. An interval is defined when a value is provided to the Max Property Name.

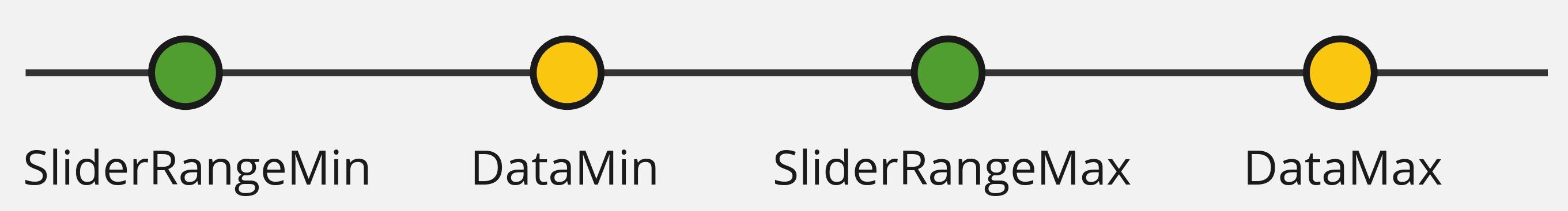

Interval data​

The Time Range widget will only show the features on the map that have a range that overlaps with the widget slider.

time interval widget
Time interval widget

The formula to filter intervals is:

DataMin < SliderRangeMax && DataMax > SliderRangeMin

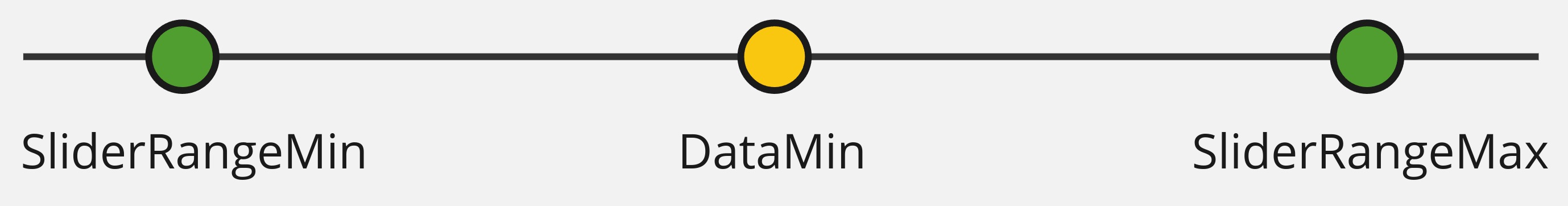

Non-interval data​

The Time Range widget will only show the features on the map that have a value that is included by the widget slider range.

time non-interval widget
Time interval widget

The formula to filter non-intervals is:

DataMin < SliderRangeMax && DataMin > SliderRangeMin

where:

Min Property Name​

The name of the feature1 property which will hold the value for DataMin.

Max Property Name​

The name of the feature property which will hold the value for DataMax. As described above, this field is optional.

Min and Max Property Format​

Defines the format used to serialize dates when building queries from the time widget values.

The format should be supported by the underlying date engine.

Other possible values are

  • utsm for Unix Timestamp 2 in milliseconds
  • utss for Unix Timestamp in seconds

Extends From & Extends To​

Define the extent of the time slider.

Footnotes​

  1. one element of the vector dataset ↩

  2. the number of milliseconds since the Unix Epoch ↩
