Settings

At the top right of the screen, you find the Settings menu.

1

2

The application and user Settings buttons

There are 2 types of Settings:

1. Application Settings
2. User Settings

Here, you may use the gear icon to configure global Settings. Clicking the user initials allows you to log out, or consult the documentation of HxGN Smart Sites.

Application Settings

The Application Settings button opens the application Settings panel.

The panel contains two sections:

1. Memory consumption
2. 3D Mesh Quality Falloff
3. Map Effects

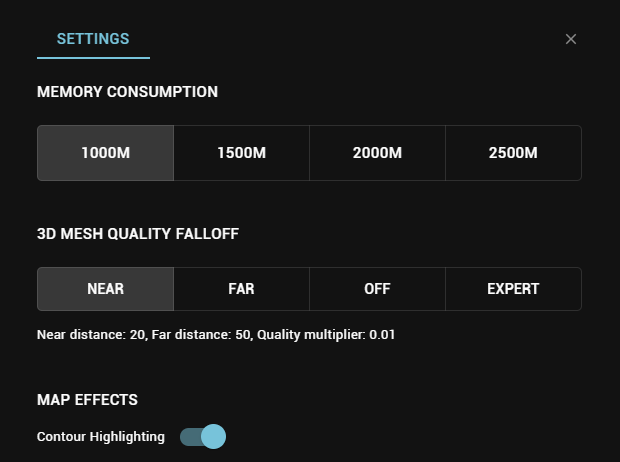

The application Settings panel

1

2

3

备注

The Settings are persisted in the browser and applied through multiple sessions.

Memory Consumption

Sets the maximum memory consumption allowed by the application. This does not necessarily mean that the application will consume all the allowed memory.

注意

this setting might cause the application to crash if set higher that the available hardware resources. You can run a diagnostic of your hardware on the LuciadRIA system diagnostics page to find out what the available resources are.

3D Mesh Quality Falloff

The quality factor controls how much data is loaded into the view. Lowering it reduces resource usage, which should positively affect performance. However, making the quality factor too low reduces visual quality.

The 3D Mesh Quality Falloff makes the quality factor dependent on how far the data is from the camera. Data that is close to the camera is loaded in full detail, using the original quality factor. Data that is far from the camera is loaded in lower detail, lowering the quality factor by a multiplier. The quality factor multiplier for data between the close and far distances is gradually degraded.

This panel allows you to control the close, far and multiplier values via 3 presets.

Preset	Far distance quality	Resource usage
NEAR	This preset sacrifices far distance quality the most.	lowest
FAR	This preset moderately sacrifices far distance quality.	average
OFF	The data is loaded with its original quality factor.	highest

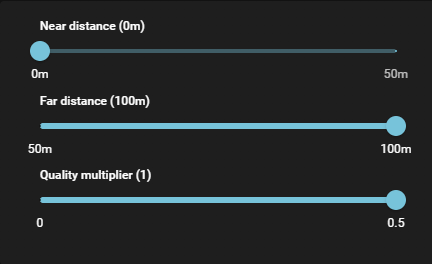

Additionally, EXPERT mode gives you full control over the near and far distances, as well as the falloff multiplier.

The user Settings

备注

3D Mesh Quality Falloff does not impact Publications with performance management enabled.

Map Effects

Contour Highlighting

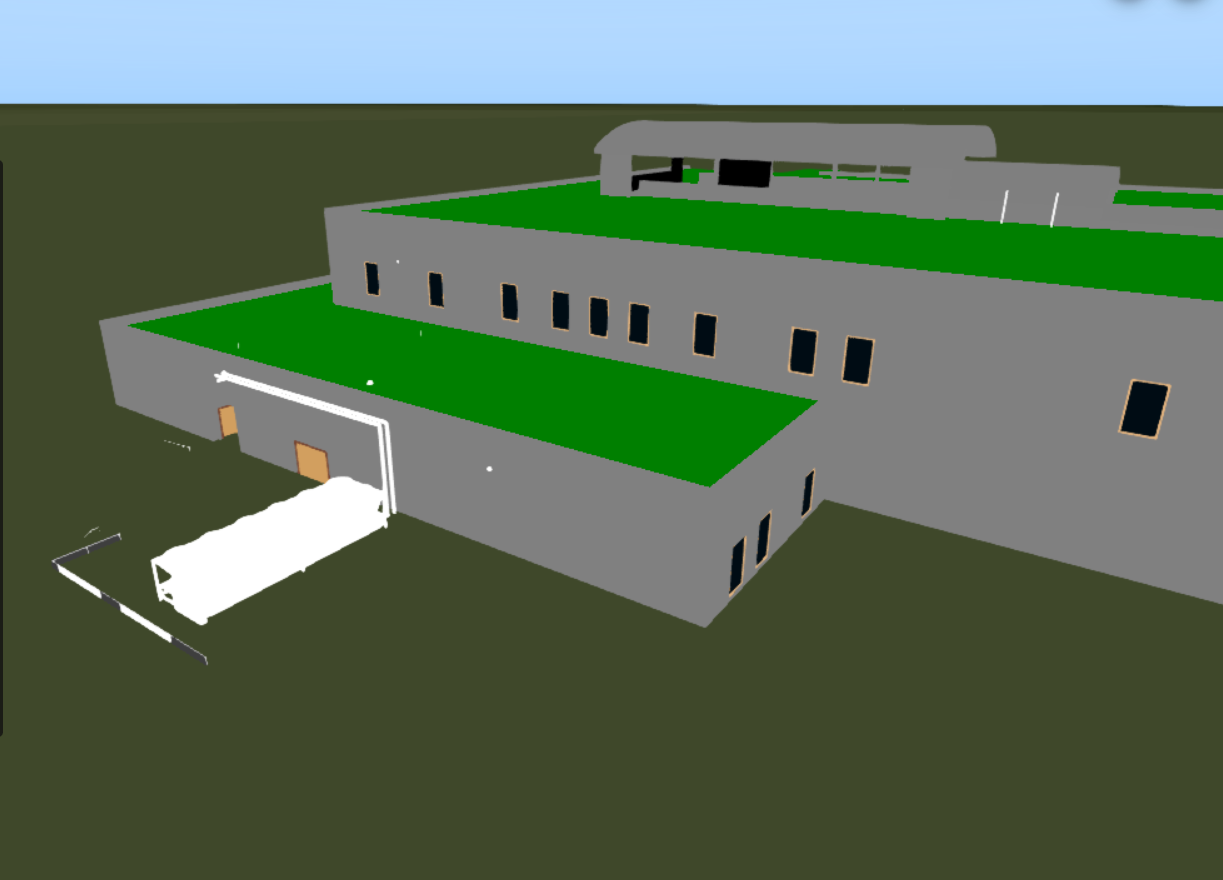

Contour highlighting disabled

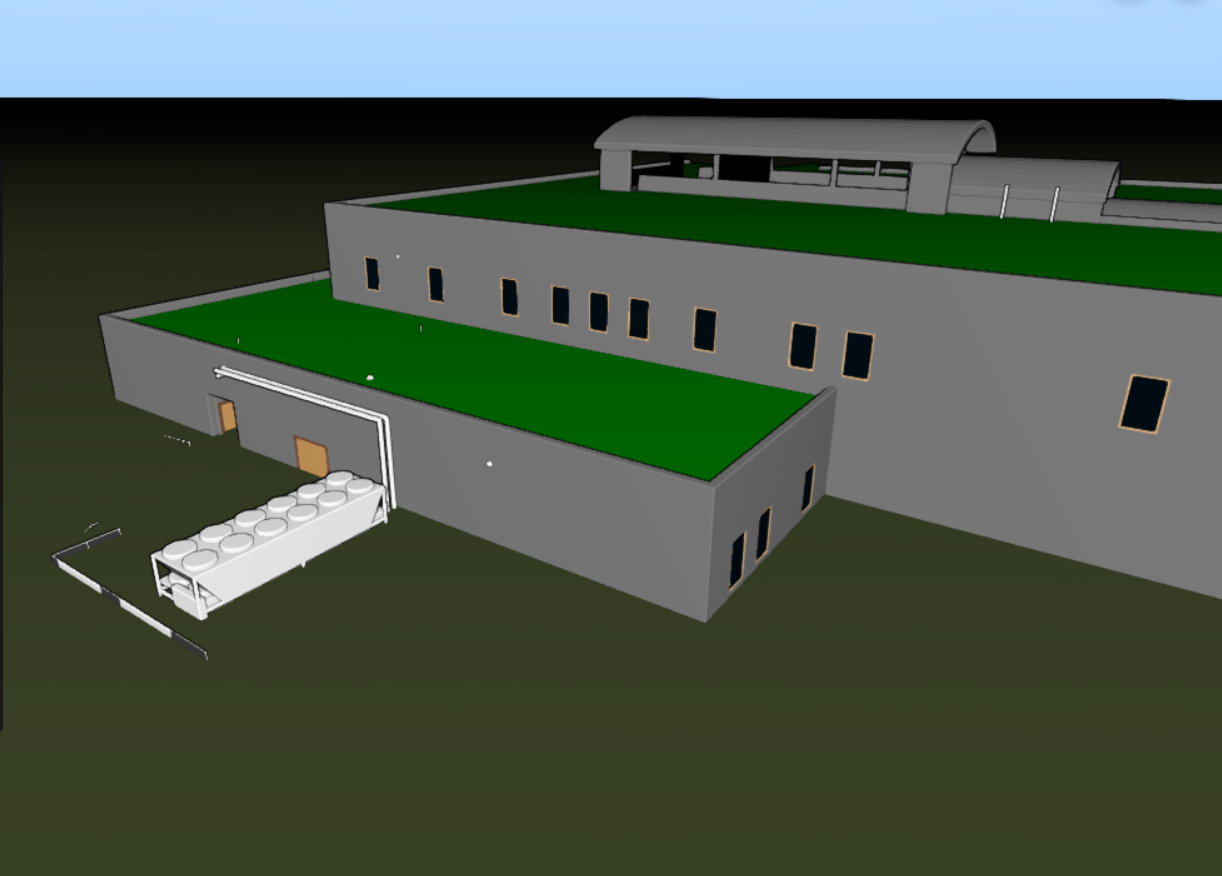

Contour highlighting enabled

This global map setting accentuates the shapes of objects by shading their outlines. It can give 3D datasets more depth and make it easier to understand how geometries relate to each other.

User Settings

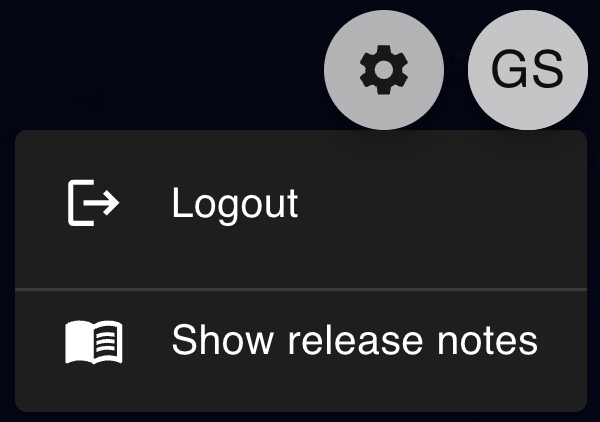

The user Settings

The User Settings button with your initials, opens the application Settings panel.

It contains the following sections:

1. Log out of the HxGN Smart Sites Client application.
2. Navigate to the release notes.
