Time Stamp

This widget filters assumes that the data defines an interval. The Time widget will only show the features on the map that have a range that includes the widget slider value.

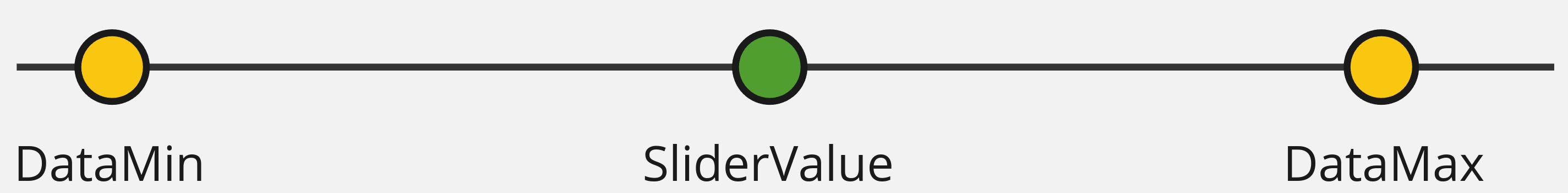

time interval widget
Time interval widget

The formula to filter the data is:

DataMin < SliderValue && DataMax > SliderValue

where:

Min Property Name​

The name of the feature 1 property which will hold the value for DataMin.

Max Property Name​

The name of the feature property which will hold the value for DataMax.

Min and Max Property Format​

Defines the format used to serialize dates when building queries from the time widget values.

The format should be supported by the underlying date engine.

Other possible values are

  • utsm for Unix Timestamp 2 in milliseconds
  • utss for Unix Timestamp in seconds

Extends From & Extends To​

Define the extent of the time slider.

Footnotes​

  1. one element of the vector dataset ↩

  2. the number of milliseconds since the Unix Epoch ↩
